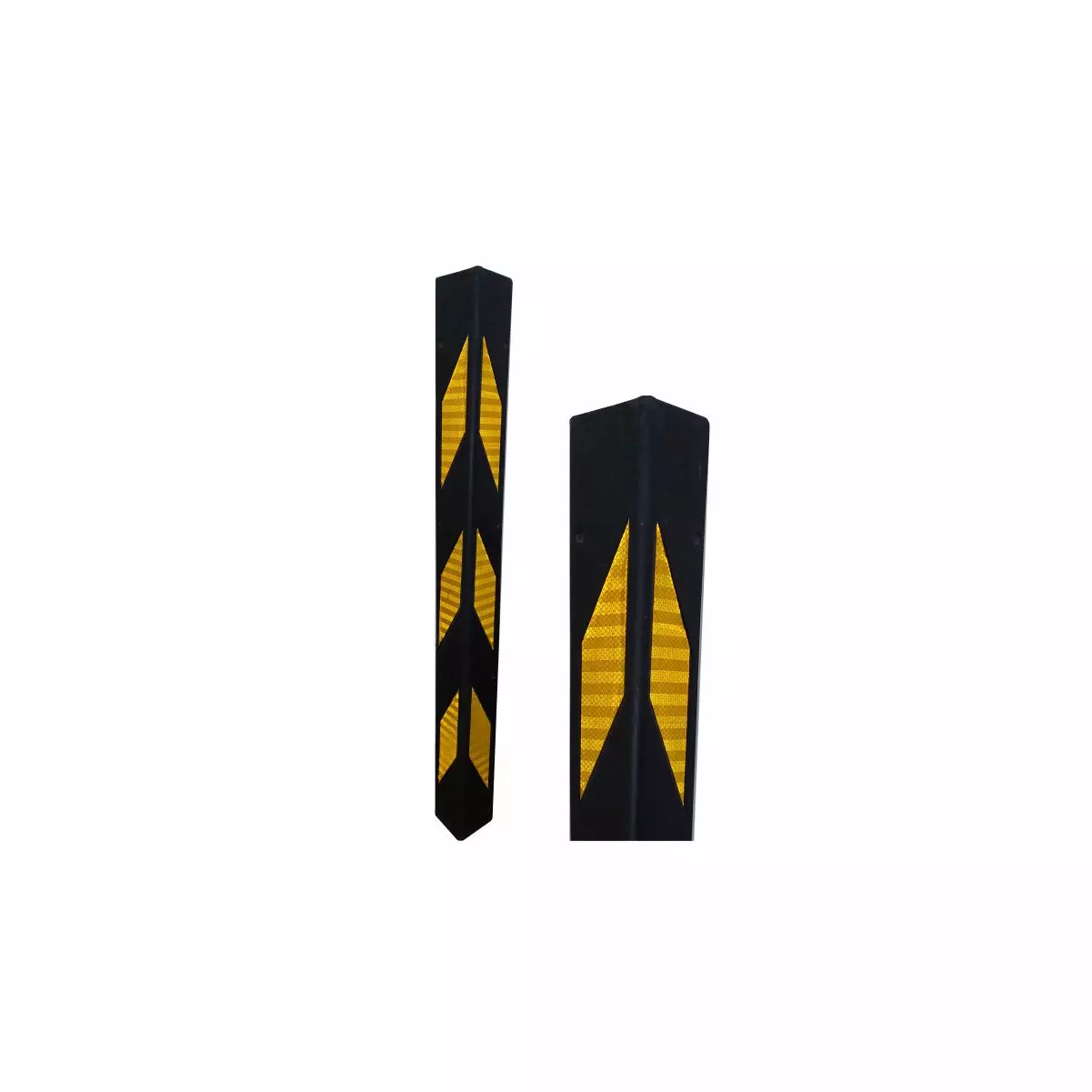

Corner Guard

Product summary

Rubber corner guards are essential safety and protection components used to shield structural corners from vehicle impact and prevent damage to equipment or pedestrians. Below is a standard industrial-grade specification.

Detailed product information

1. Product Overview

Material: High-impact resistant SBR (Styrene Butadiene Rubber) or NR (Natural Rubber) blend.

Application: Parking garages, warehouses, loading docks, and commercial corridors.

Function: Impact absorption and visual warning.

2. Physical Dimensions

Feature	Standard Requirement
Shape	L-shape (90° angle) or Bullnose (rounded)
Thickness	8mm to 12mm (depending on impact rating)
Wing Width	100mm x 100mm (standard)
Standard Heights	800mm, 1000mm, or 1200mm

3. Material Properties

Hardness: $65 \pm 5$ Shore A (ASTM D2240).

Tensile Strength: Minimum 6.0 MPa.

Elongation at Break: Minimum 250%.

Weather Resistance: UV stabilized for outdoor use; resistant to extreme temperatures (-20°C to +60°C).

Chemical Resistance: Resistant to oil, grease, and common cleaning agents.

4. Safety Features

Visibility: Equipped with high-intensity reflective yellow or white tape (beaded or prismatic) for low-light visibility.

Reflective Pattern: Chevron or solid stripe design.

Texture: Matte finish to prevent glare and mask minor scuffs.

5. Installation & Mounting

Fixing Method: Mechanical fastening via pre-drilled holes.

Hardware: M6 or M8 stainless steel/galvanized anchors with plastic shields.

Adhesive (Optional): High-strength epoxy or polyurethane adhesive for smooth surfaces where drilling is prohibited.

6. Performance Standards

Note: The product should comply with local building and safety codes (e.g., OSHA standards for workplace safety or relevant ISO certifications for rubber quality).

7. Maintenance

Cleaning: Use mild soap and water. Avoid abrasive scrubbers that may damage reflective tape.

Inspection: Periodically check for anchor tightness and integrity of reflective strips.
